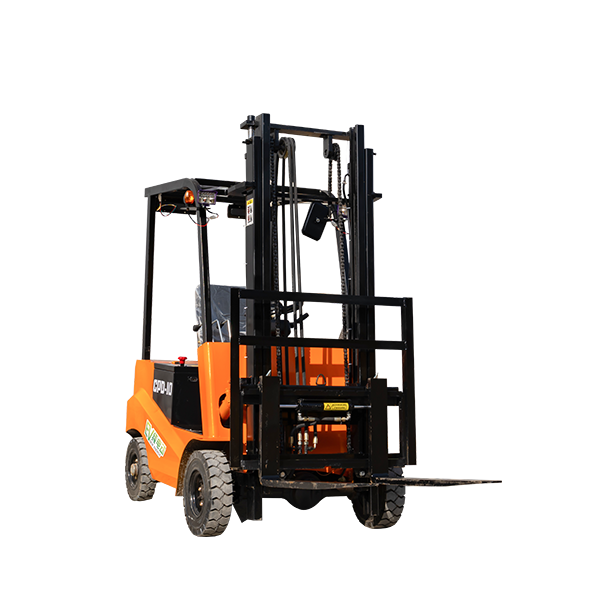

HMC1T

Model 1T
Lifting height 3m (customizable)

Own weigh 1700KG
Battery weight 5pieces
Battery capacity 220Type
Voltage 60V
Charging voltage 220V
Charging time 8hours
Full charge working time 4-6hours
Maximum travel speed 20-30Km/h
Maximum lifting speed 11m
Full load maximum gradient 20°
Turning radius 90°
Overall dimensions 2200*1200*2100
Front tire model 500-10 solid
Rear tire model 400-8 solid
Fork length 1070㎜
Travel motor 2.5KW
Lifting motor 1.8KW
Motor type DC
Optional services and configurations Lifting; lateral movement; three-stage mast; central cylinder; dry battery; lithium battery; clamp; license plate
