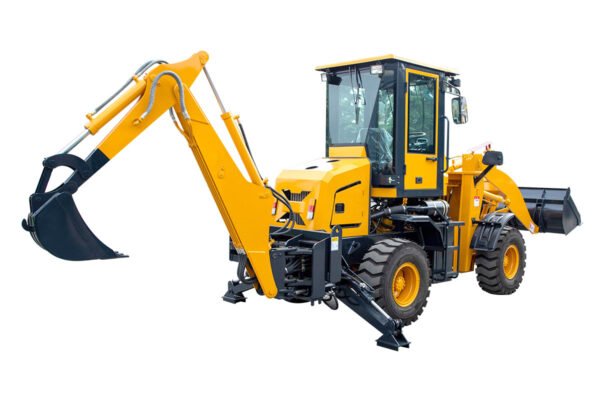

HM10-20
| Model | HW10-20 |
| Dimensions (mm) | 5500*1750*2650 |
| Wheelbase (mm) | 2070 |
| Track Width (mm) | 1475 |
| Minimum Ground Clearance (mm) | 250 |
| System Pressure (MPa) | 16 |
| Total Weight (Kg) | 3400 |
| Maximum Speed (Km/h) | 25 |
| Maximum Climbing Ability (°) | 25 |
| Minimum Turning Radius (mm) | 3500 |
| Maximum Digging Depth (mm) | 2000 |
| Digging Unloading Height (mm) | 1800 |
| Maximum Digging Radius (mm) | 2700 |
| Bucket Width (mm) | 400 |
| Bucket Capacity (m³) | 0.1 |
| Maximum Digging Height (mm) | 3300 |
| Maximum Digging Force (KN) | 25 |
| Excavator Rotation Angle (°) | 180 |
| Maximum Unloading Height (mm) | 2800 |
| Maximum Unloading Distance (mm) | 800 |
| Loader Bucket Capacity (m³) | 0.5 |
| Maximum Lifting Height of Loader (mm) | 3300 |
| Maximum Breakout Force (KN): 42 | 36 |
| Time for Shovel Action (S) | 12 |
| Engine Model | Yunnai YN48GBZ |
| Engine Type | Turbocharged Four-Stroke |
| Rated Power (KW) | 37 |
| Rated Speed (r/min) | 2400 |
| Cylinder Number – Diameter | 4-90 |
| Transmission | Fixed-Axle Power Shift |
| Gear Positions | 2 Forward, 2 Reverse |
| Torque Converter | ZL29A |
| Type | Articulated Full Hydraulic Steering |
| Steering Angle (°) | 33 |
| Type | Isuzu |
| Specifications | 20.5-16 |
| Front Wheel Pressure (KPa) | 250 |
| Rear Wheel Pressure (KPa) | 250 |
| Service Brake | Oil-brake drum brake system |
| Parking Brake | Manual |
| Fuel Tank (L) | 30 |
| Hydraulic Oil Tank (L) | 30 |
| Drive Type | Four-Wheel Drive |
| Transmission Type: | Hydraulic Transmission |
| Braking Distance (mm) | 330 |
